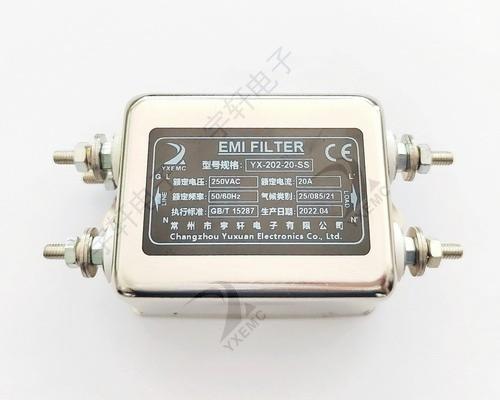

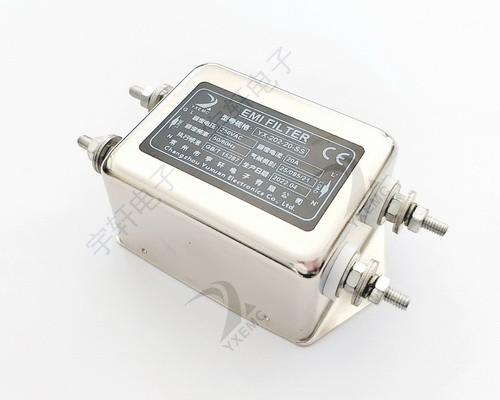

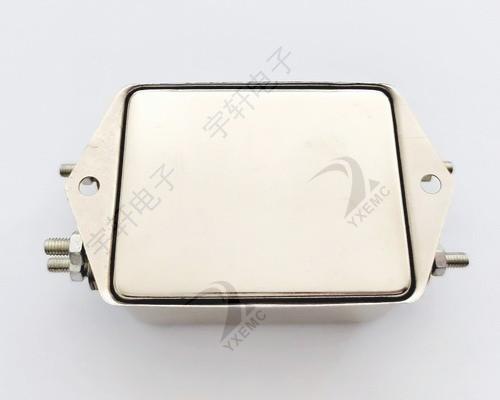

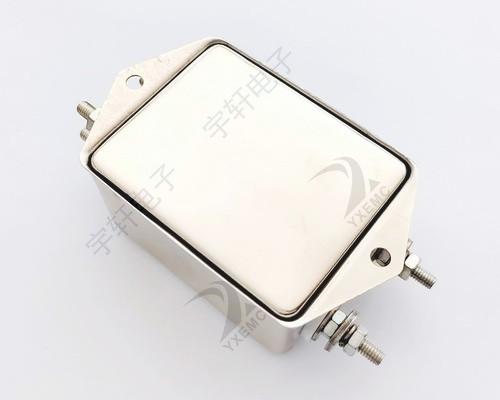

特 點 Features

● 體積小，性價比高。Small size, high cost performance.

● 常規(guī)通用，安裝方便。General purpose, easy to install.

應 用 Application

● 各種電子設備和電子測量儀器。

All kinds of electronic equipment and electronic

measuring instruments.

性能指標 Characteristcs

產(chǎn)品型號表 Filter Table

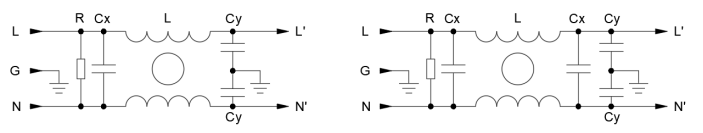

電原理圖Typical Circuit Diagram

Fig.1Fig.2

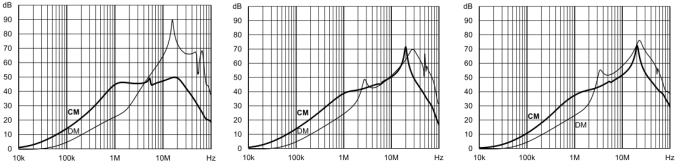

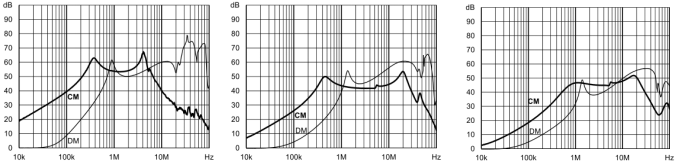

插入損耗 Insertion LOSS in dB (50Ω測量系統(tǒng)，IEC/CISPR No.17號出版物)

1A 3A 6A

10A 16A 20A

30A 60A 100A

200A

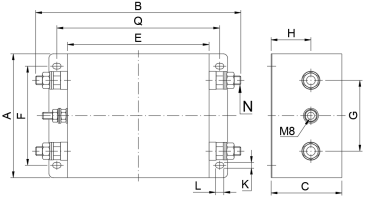

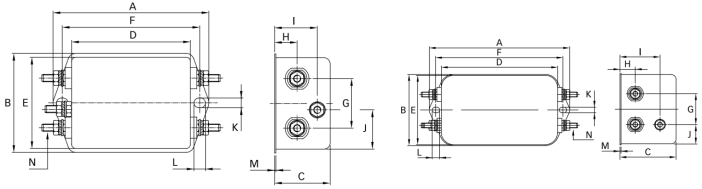

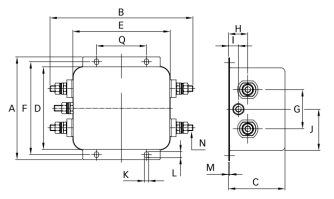

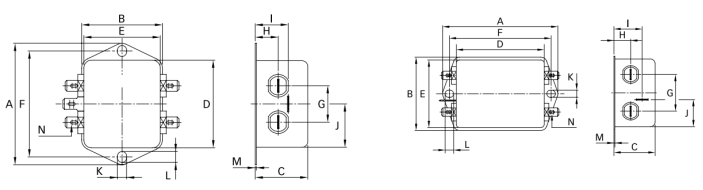

外形尺寸圖 Outline Drawing : mm

Fig.1 (1A~10A) Fig.2 (16A~20A)

Fig.3 (16A~20A) Fig.4 (30A)

Fig.5 (60A~100A) Fig.6 (200A)
